Key Specifications

Manufacturer

EASUN POWER

Inverter Power (W)

1800 W

Inverter Voltage

12V

System Phase & Parallelability

1 Phase (L/N/PE)

Charge Controllers (PV)

1 x MPPT

Operating & Grid-Blending Modes

SUB, SBU

Inverter Ports

RS232, RS485

Wireless Interfaces

Wi-Fi Included

Description

This hybrid solar inverter provides high energy efficiency and complete autonomy from the main power grid. It allows users to store excess solar power generated during the day into batteries for use at night or during periods of low solar generation.

Key advantages of the hybrid solar inverter:

• Pure sine wave inverter;
• Configurable input voltage range for home appliances via LCD setting;
• Configurable battery charging current based on applications via LCD setting;
• Configurable AC/Solar Charger priority via LCD setting;
• Compatible with mains voltage or generator power;
• Auto restart while AC is recovering;
• Overload / Over-temperature / Short-circuit protection;
• Smart battery charger design for optimized battery performance;
• Cold start function;
• Wi-Fi interface included.

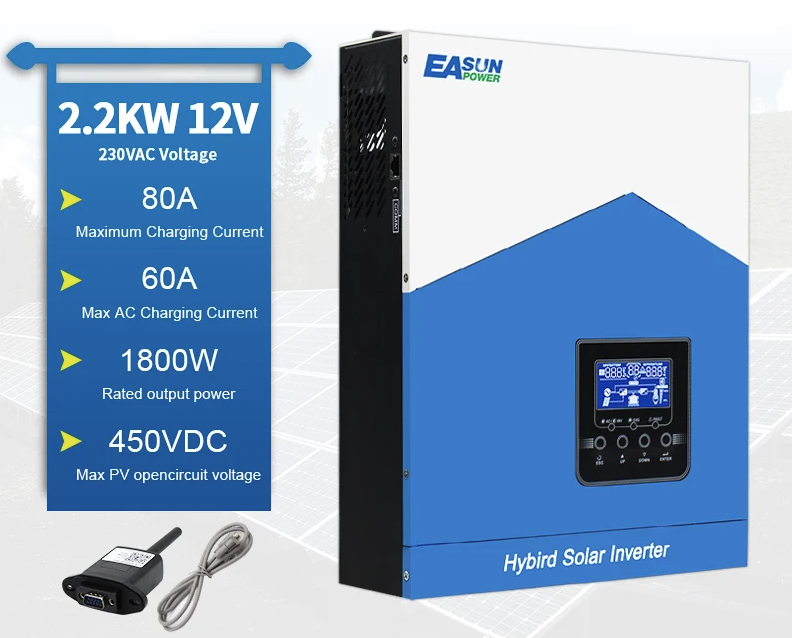

Note: The EASUN 2.2kW 12V ISolar-SMH-II-2.2KW (2200VA/1800W, Max CH 80A, AC 60) model requires a battery to operate.

ISolar-SMH-II-2.2KW Modifications Available:

• EASUN 2.2kW 12V ISolar-SMH-II-2.2KW (2200VA/1800W, Max CH 80A, AC 60) – base model in blue/white case without Wi-Fi (SKU: 12587);
• EASUN 2.2kW 12V ISolar-SMH-II-2.2KW (2200VA/1800W, Max CH 80A, AC 60) Wi-Fi – model in blue/white case with Wi-Fi interface (SKU: 12588) — You are currently on this product page;
• EASUN 2.2kW 12V ISolar-SMH-II-2.2KW Grey (2200VA/1800W, Max CH 80A, AC 60) Wi-Fi – model in grey case with Wi-Fi (SKU: 12552).
